The MCT80M-BLE is an access terminal dedicated to RACS 5 access control and building automation system.

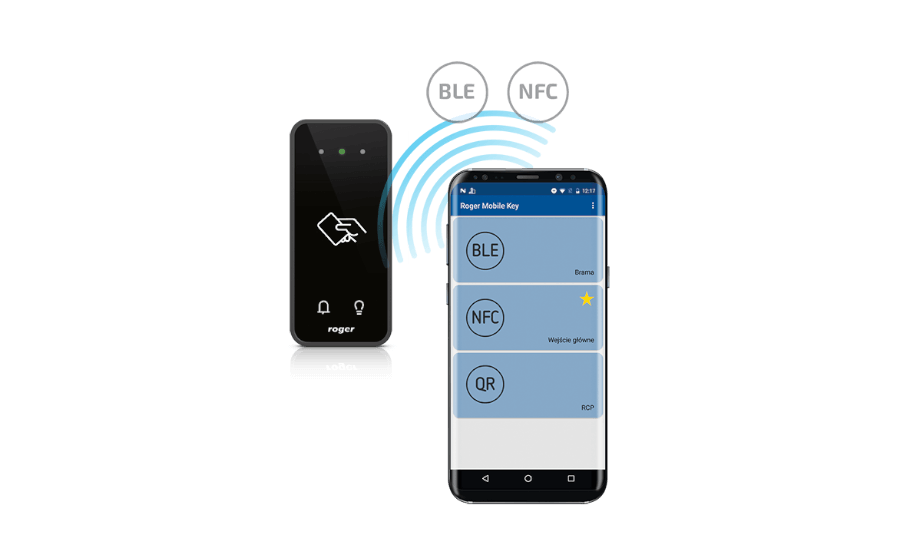

Terminal enables identification of users by 13.56 MHz MIFARE® Ultralight/Classic/DESFire/PLUS cards and by use of smartphone with NFC or Bluetooth technology.
In case of Bluetooth identification the reading range can reach up to 10 meters while other methods offer few centimetres of reading range. The mobile identification requires Roger Mobile Key application installed on Android or iOS phone.
Reader is equipped with two functional keys: Door Bell and Light which can be programmed for other function if necessary. MCT80M-BLE is connected to access controller through RS485 interface.
Because of its relatively small size, reader can be also used as a locker/cabinet reader. MCT80M-BLE can be installed in outdoor locations without any additional protection measures. Terminal is aligned with QUADRUS series product line.
Access terminal; 13.56 MHz MIFARE Ultralight/Classic/DESFire/PLUS/NFC/BLE; supply 12 V; QUADRUS series design
High base of the reader enclosure; the base comes complete with a brand new device and can be used as a replacement for the standard base
pdf MCT80M-BLE Installation Manual (378 KB)
pdf MCT80M-BLE Operating Manual (779 KB)
pdf AN028 License Plate Recognition Cameras (857 KB)
pdf AN046 Users Identification with Mobile Devices (785 KB)
pdf KR002 Mobile Identification (7.66 MB)
pdf KR002 Mobile Identification (Danish) (7.70 MB)
pdf KR004 Car Park Access Control (474 KB)
pdf KR004 Car Park Access Control (Danish) (521 KB)
pdf MCT80M-BLE Data Sheet (227 KB)
pdf MCT80M/MCT80M-BLE Declaration of Conformity EC (104 KB)
