VISO SMS Security Management System

VISO SMS is primarily used for monitoring, visualization, and security management in facilities.


VISO SMS is primarily used for monitoring, visualization, and security management in facilities.

VISO SMS is a security management system that works with the RACS 5 access control system and enables integration with fire alarm systems (FAS), intrusion alarm systems (IAS), closed-circuit television systems (CCTV), communication systems (VoIP, SMS, e-mail) and with building automation. VISO SMS can also be used outside the RACS 5 system as an independent software platform for the integration of security systems.

As other Security Management Systems, VISO SMS is primarily used for monitoring, visualization, and security management in facilities. It enables central monitoring of various systems within one software and in case of emergency it allows operators to obtain a clear picture of the situation in the monitored area, so they can efficiently and quickly make decisions and react to situations such as fire, intrusion, failure, etc.

The multi-user VISO SMS system offers a modern, efficient, and intuitive user interface (GUI) and is integrated with popular security systems from Bosch, Siemens, Satel, Milestone, Hikvision, Dahua, and others. The solution can be successfully used in such facilities as office buildings, industrial plants, stadiums, museums, and state administration buildings, but also other facilities where the use of SMS class solution is beneficial.

VISO SMS enables the implementation of security scenarios, i.e., procedures for operators in an emergency situation. At the same time, it records all the activities of operators for later analysis as part of reports and summaries. The system supports the effective management of security personnel and can also be used to keep records of performed and planned maintenance and repair work.

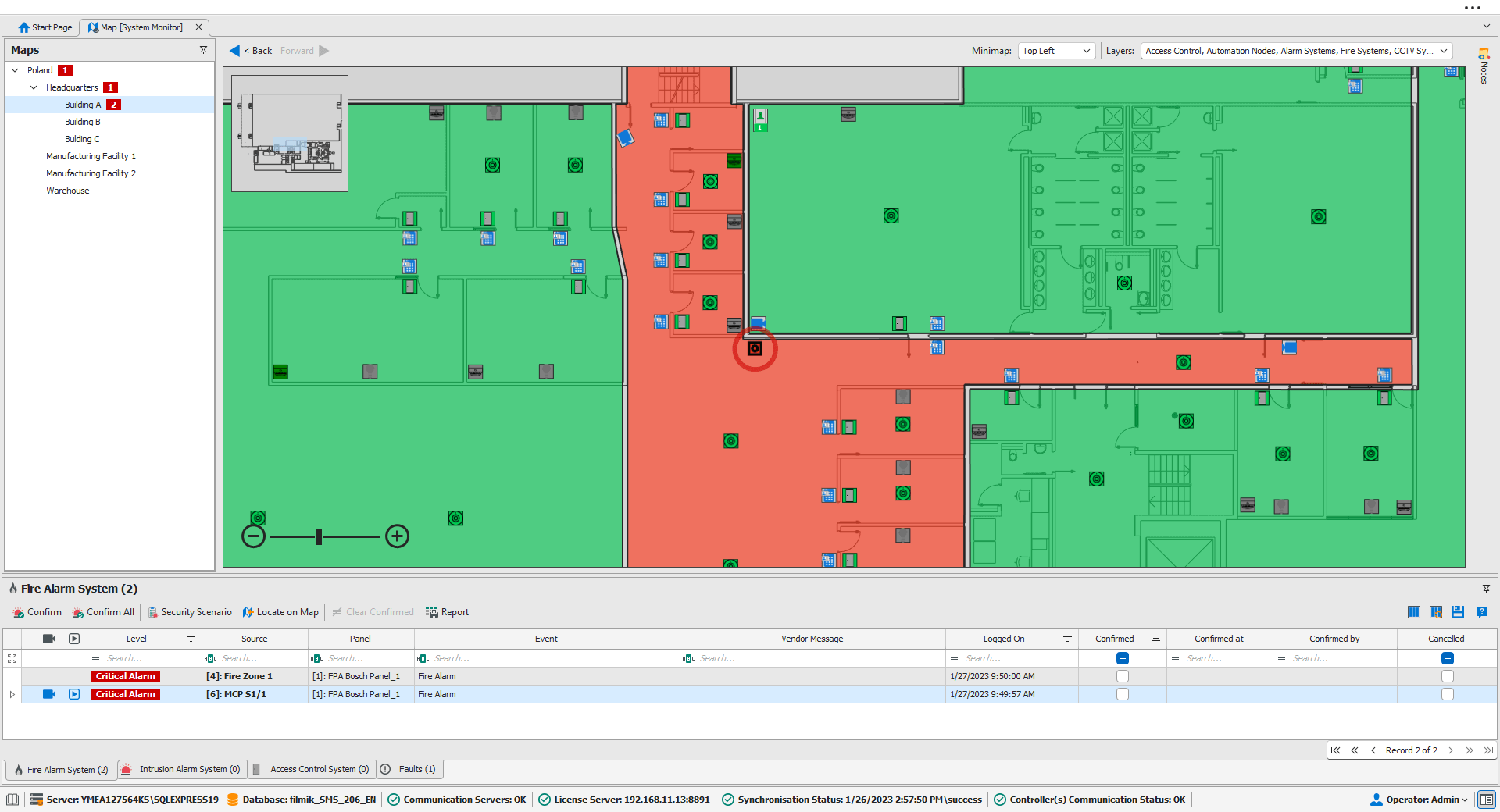

The VISO SMS module consists of the Maps Monitor presenting the area in a graphical layout and the Notifications Monitor presenting alarms, warnings, failures, and other information recorded in the monitored area. The Maps Monitor includes static graphic backgrounds and interactive objects reflecting elements such as detectors, doors, cameras, etc. The Notifications Monitor presents alarms, warnings, information, and failures in a window divided into individual types of monitored systems.


  • monitoring, visualization, and localization of states, alarms, and failures on maps
  • maps in such formats as BMP, JPG, PNG, SVG, DWG, DXF
  • generating evacuation reports Issuing remote and global commands
  • closed-circuit television (CCTV) support in conjunction with supported systems
  • automatic signalling of events and notifications via mobile text and email
  • automatic execution of actions in the system in response to selected events
  • monitoring of selected access doors including automatic display of associated video stream
  • support for monitors in regard of alarm zones, attendance zones, and automation nodes
  • reporting the attendance time of users in freely defined areas of the system
  • configurable permissions for program operators and record of their actions in the log


License for the RACS 5 system management software; base version, includes a license to operate VISO Web and VISO Mobile; requires the License Key; base version limitations:
- up to 32 doors (can be expanded without limit)
- up to 1000 users (can be expanded without limit)
- 2 operator workstations (can be expanded without limit)
- 3 communication services (can be expanded without limit)
- 100 objects on Maps (can be expanded without limit)
- 1 partition (can be expanded without limit)

License for an additional 100 objects on Maps

License for an additional 500 objects on Maps

License for an additional 1000 objects on Maps



pdf AN055 VISO SMS Security Management System (1.47 MB)

pdf VISO SMS Monitoring and Visualisation of Security Systems Brochure (2.95 MB)

pdf VISO SMS Data Sheet (118 KB)

archive VISO v2.0.8.35855 (249.16 MB)
Windows OS software dedicated to RACS 5 system setup and management.
Note! Application works with firmware MC16 v1.7.4.653 and higher - Download from here
The file database is no longer supported. Please read the application note AN015 before installation.

archive RogerSVC v2.0.8.35855 (190.68 MB)
Roger Service Manager pack
Note! For multi-user operation, the pack should be installed on one computer (e.g. on a server) only.
Pack works with firmware MC16 v1.7.4.653 and higher -Download from here
