VISO EX Application for RACS 5 System Management and Configuration

VISO EX software is a Windows application for configuration and management of RACS 5 EX access control and building automation system.



VISO EX software is a Windows application for configuration and management of RACS 5 EX access control and building automation system.

The enterprise version (RACS 5 EX) managed by VISO EX provides additional functionality and is dedicated mostly to large and most demanding access control installations. Enterprise version offers Integration Server, which enables software integration with third-party systems. RACS 5 EX system can be divided into logical partitions managed by individual administrators (tenants).

The VISO EX base license offers support for 32 doors and 1000 users. The VISO EX version has no limitations on the number of passages and users. To expand the system, packages are offered to extend the base license with additional transitions, users, and functionalities.

The most significant improvements and new features in VISO EX in the RACS 5 v2 system:

  • Can work in territorially distributed systems
  • An extensive module for the visualization of integrated security systems
  • Extensive alert module
  • Possibility of remote configuration of bus devices
  • Further integration with CCTV, VMS, PSIM, SMS, and building applications
  • Integration with Active Directory
  • 64-bit version of the software
  • Discontinuation of file database support

Additionally mobile version (VISO Mobile) and web browser version (VISO Web) are offered. Both VISO Mobile and VISO Web are dedicated to daily management of the system especially in regard of user management and system monitoring and contrary to VISO ST and VISO EX they cannot be used for system configuration.

RACS 5 software is modular and it includes such programs as license server, communication server and integration server which is used for communication with third party software. VISO application is not necessary for current operation of the system and can be started only when needed. VISO can be operated on multiple displays and it enables configuration of tiles for frequent tasks.


  • MS SQL Server database
  • can work in territorially distributed systems
  • multi-station operation
  • tool for integration with the RACS 5 system (API)
  • encrypted communication with system devices and system servers
  • defining authorizations for program operators
  • splitting the system into logical partitions operated by independent operators

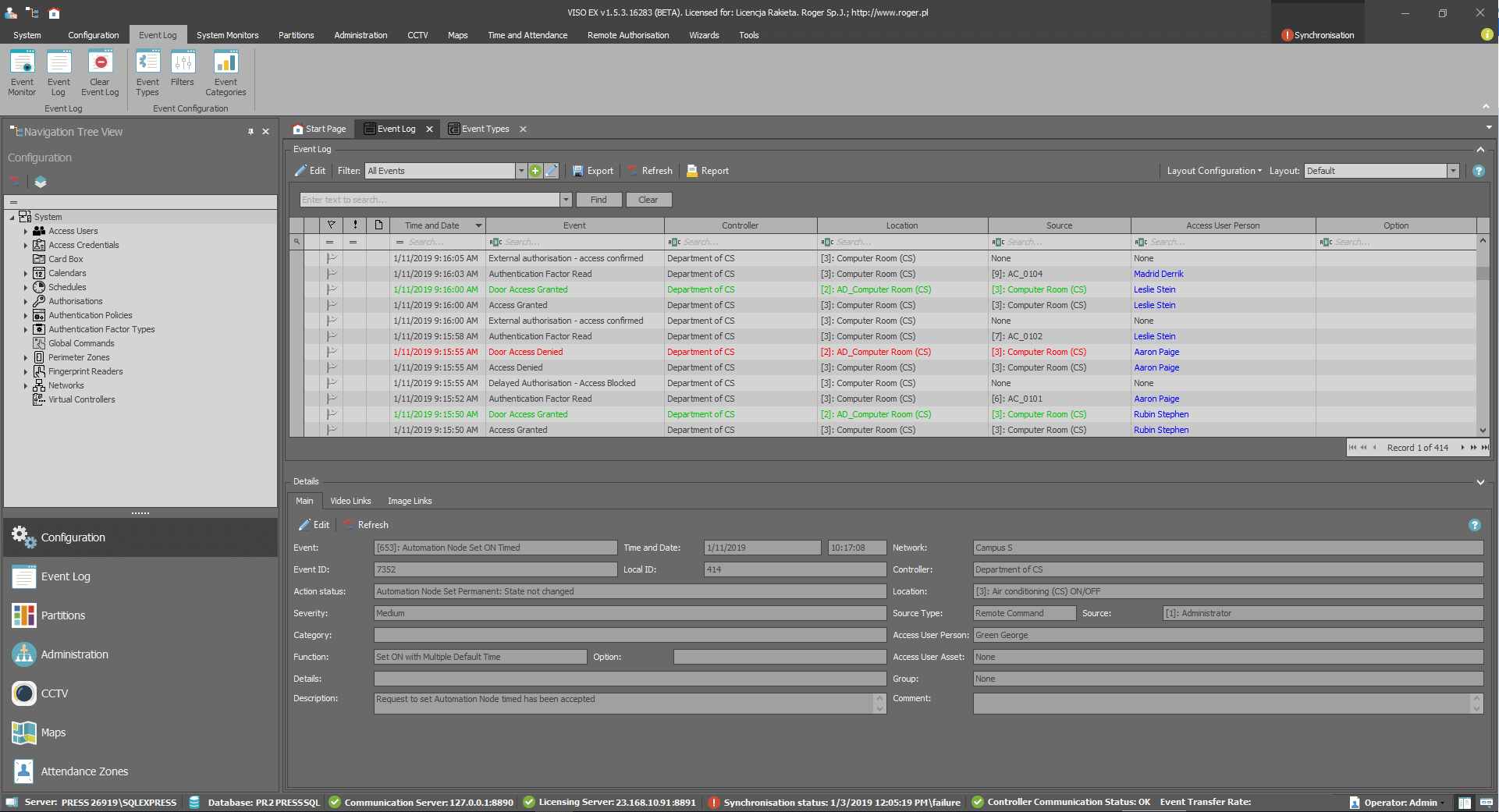

  • registration of program operators' activities
  • unlimited number of system users
  • unlimited number of doors in the system

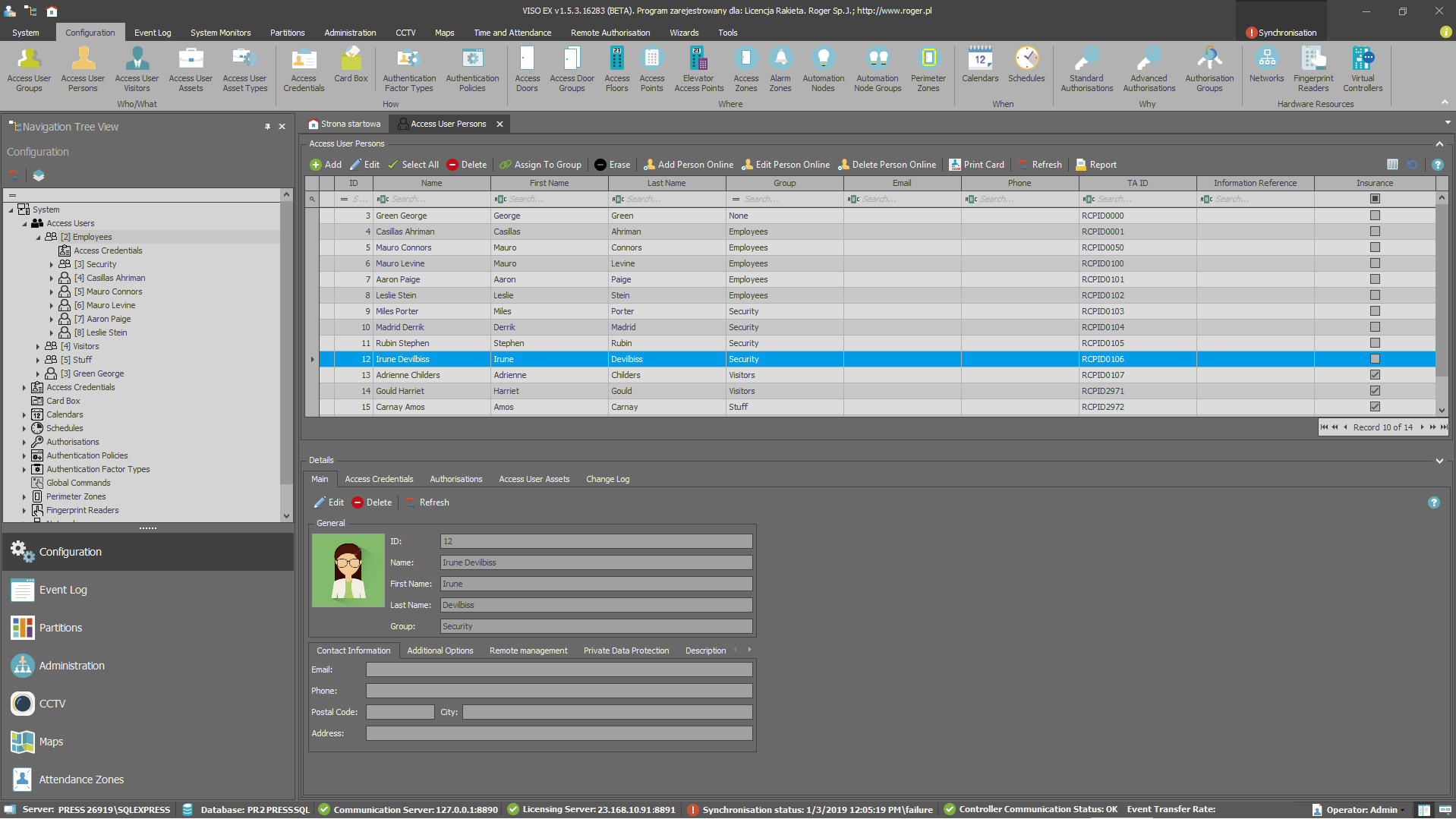

  • service of people, guests, groups, and objects
  • monitoring the movement of users and objects

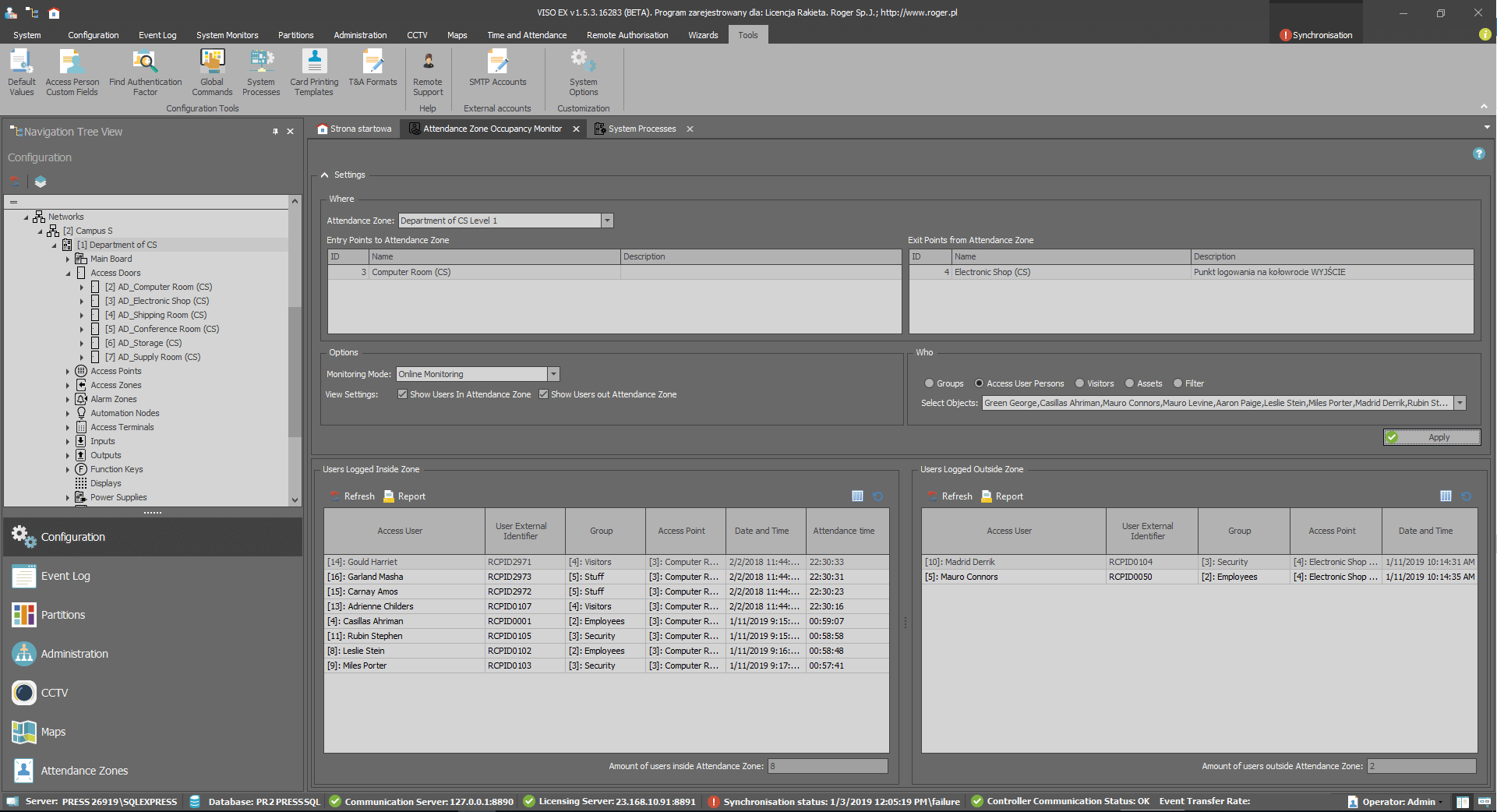

  • reporting the time of user presence in freely defined areas of the system

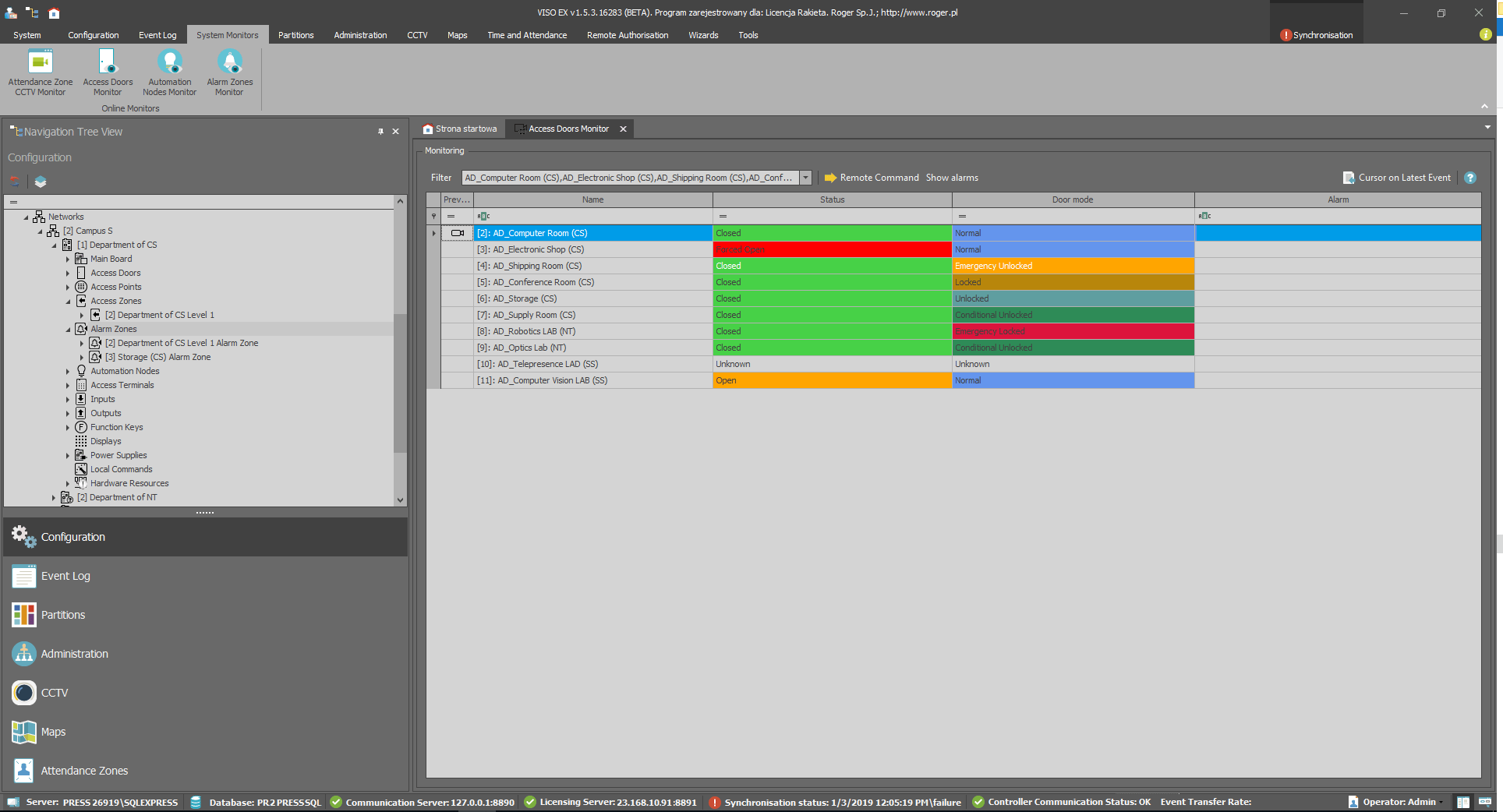

  • monitoring the current operation of the system in text mode (table)

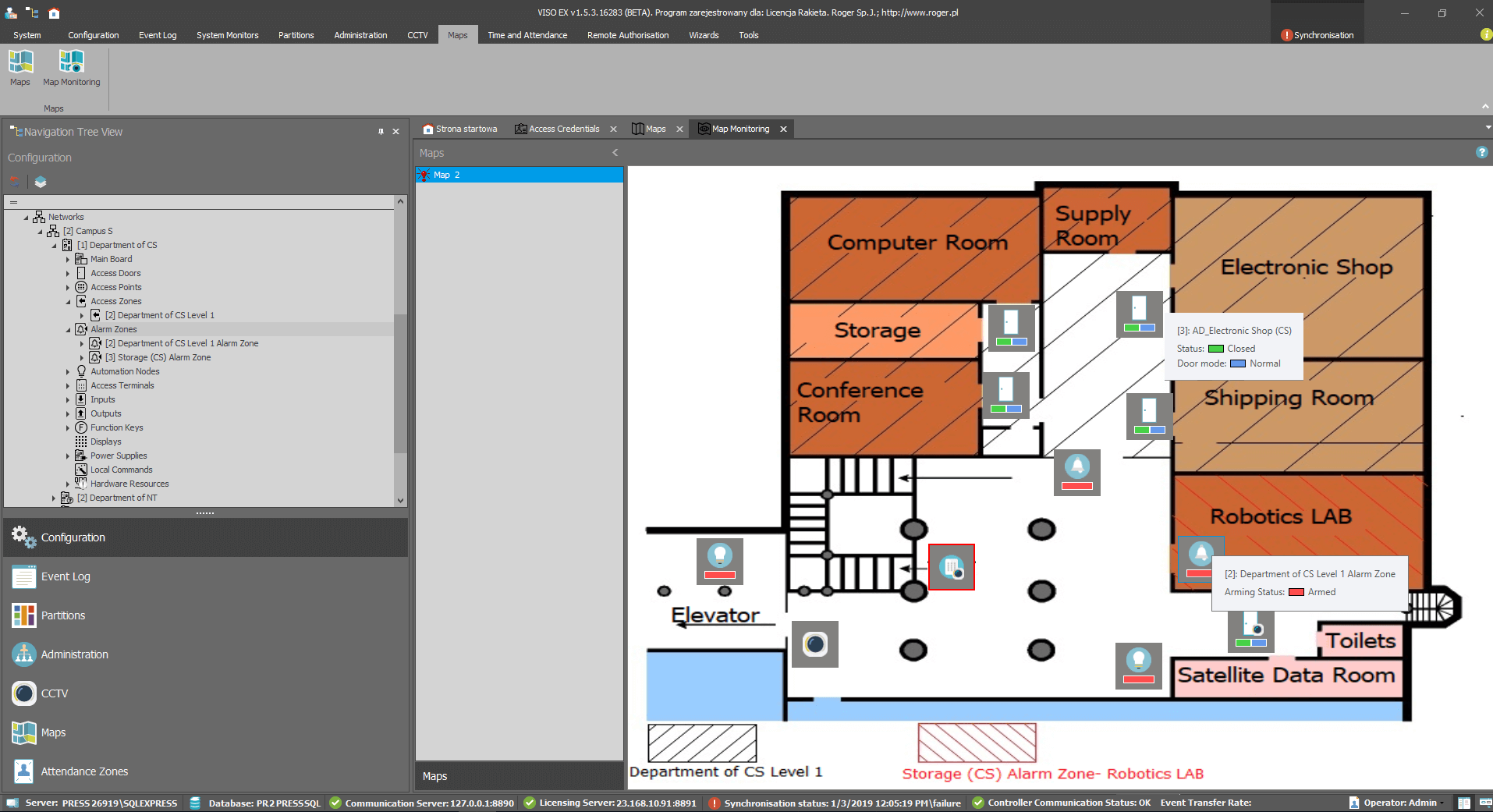

  • visualization of security systems (AC, IAS, FPS, CCTV) from the map level

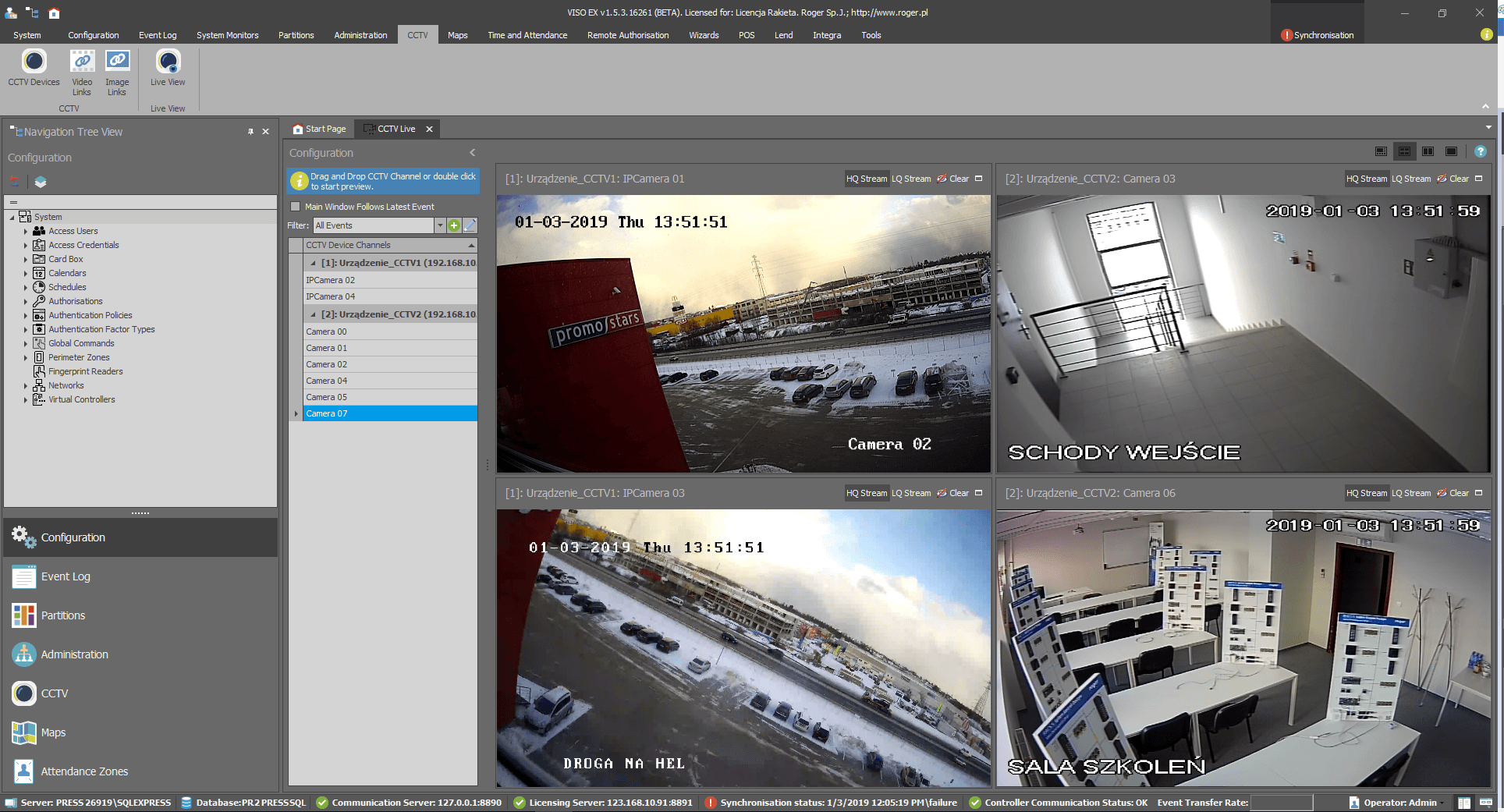

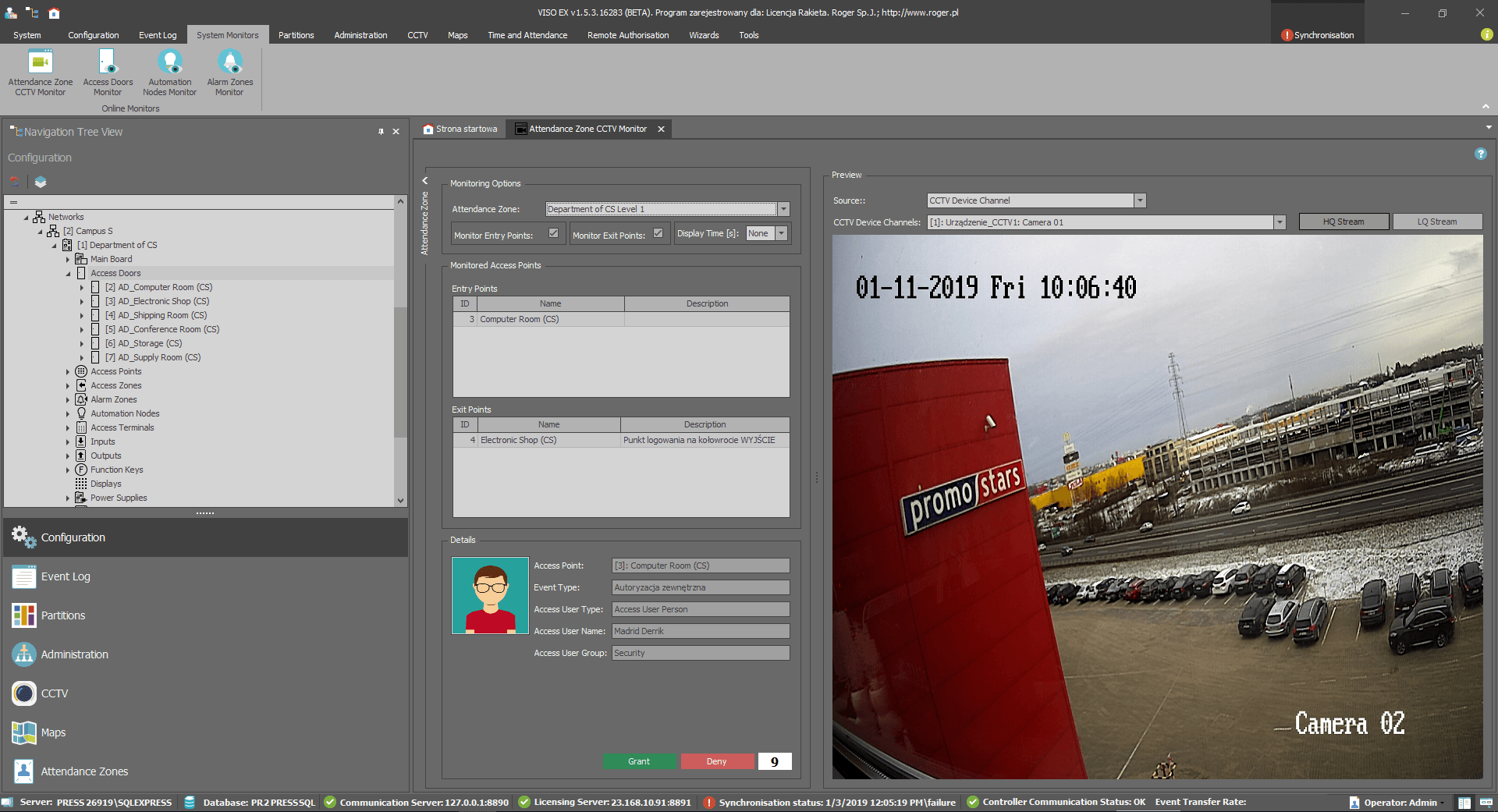

  • monitoring of selected doors with video preview
  • monitoring of signaling of ordering services in hotel rooms
  • reporting of events for external working time accounting systems
  • ability to create your own RCP attendance types

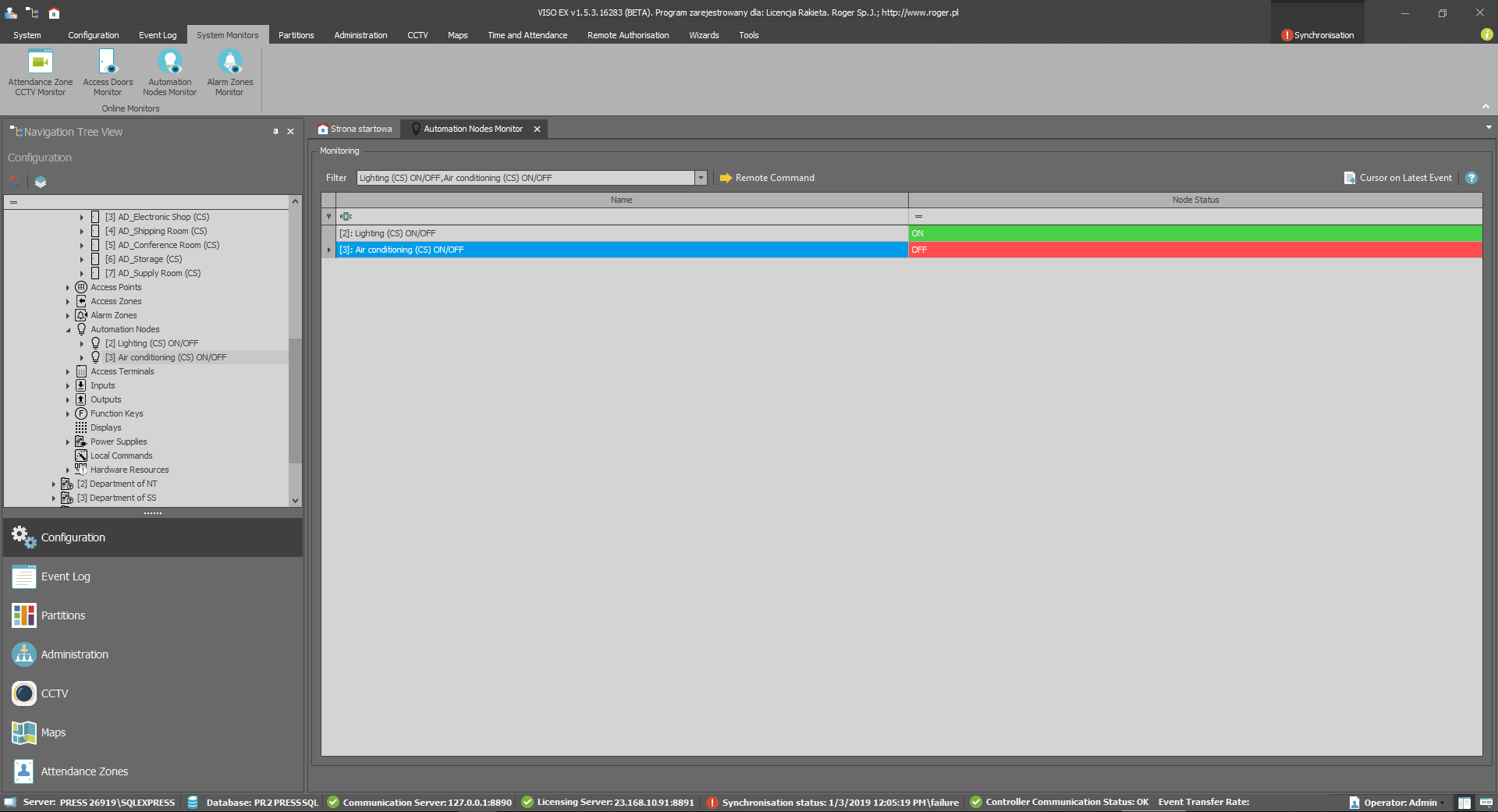

  • monitoring and control of any state of the object with the use of automation nodes
  • defining and transferring NFC and BLE mobile IDs
  • defining own event types for selected automation nodes
  • system control using remote commands

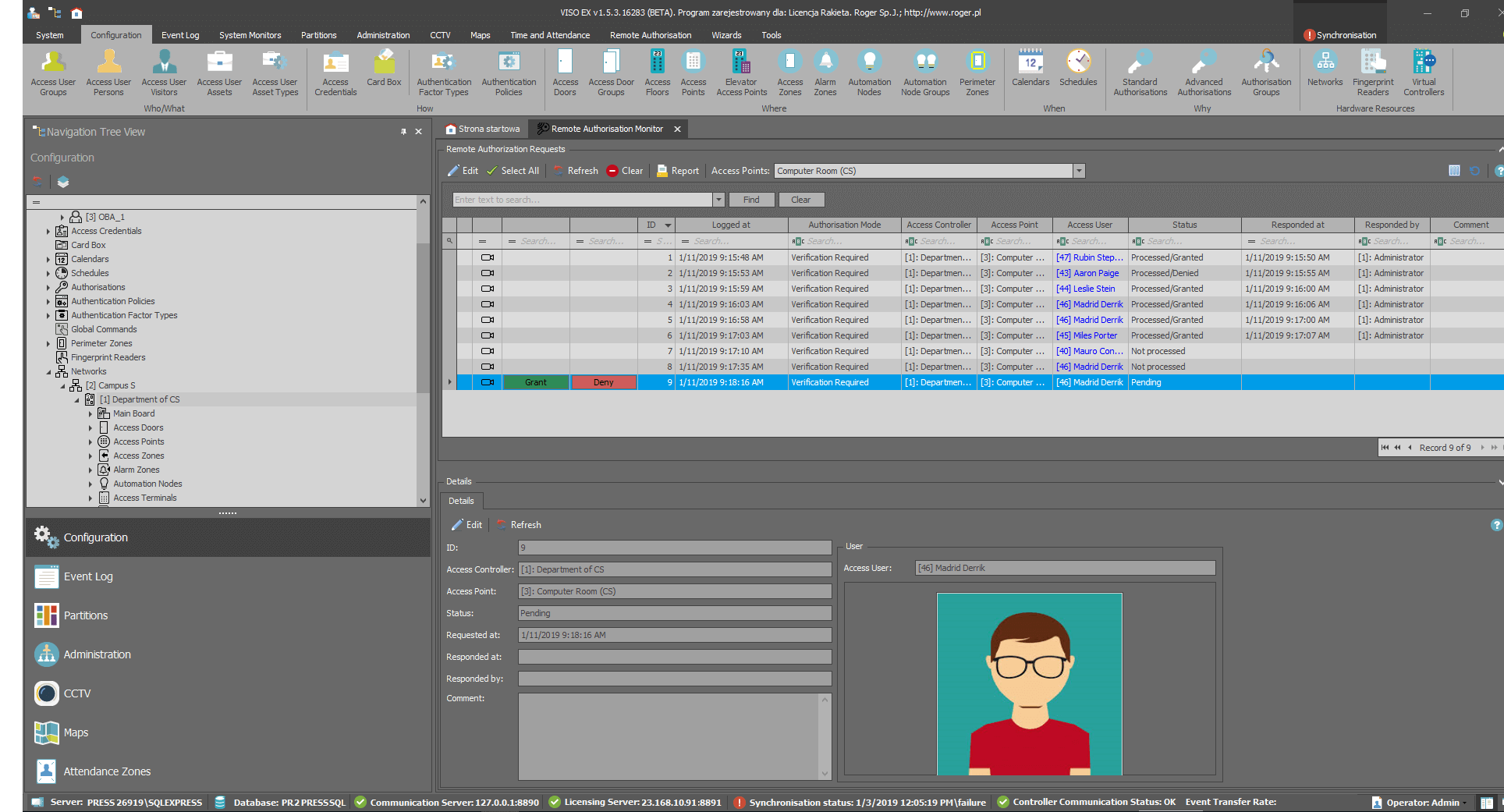

  • authorization of access from the program operator's console
  • automatic execution of actions in the system in response to selected events
  • defining alerts for selected events
  • signaling of alerts on the operator's console
  • signaling of alerts by data transmission
  • signaling of alerts by e-mail
  • integration with IAS, FPS, and CCTV systems of selected producers
  • integration with selected manufacturers of elevator systems
  • integration with building applications
  • integration with security systems SMS, BMS, PSIM, VMS
  • integration with the RKDS key management system
  • integration with Active Directory
  • support for ONVIF cameras
  • system administrator reader support
  • support for PoS points of sale
  • support for the item lending function
  • defining lending permissions

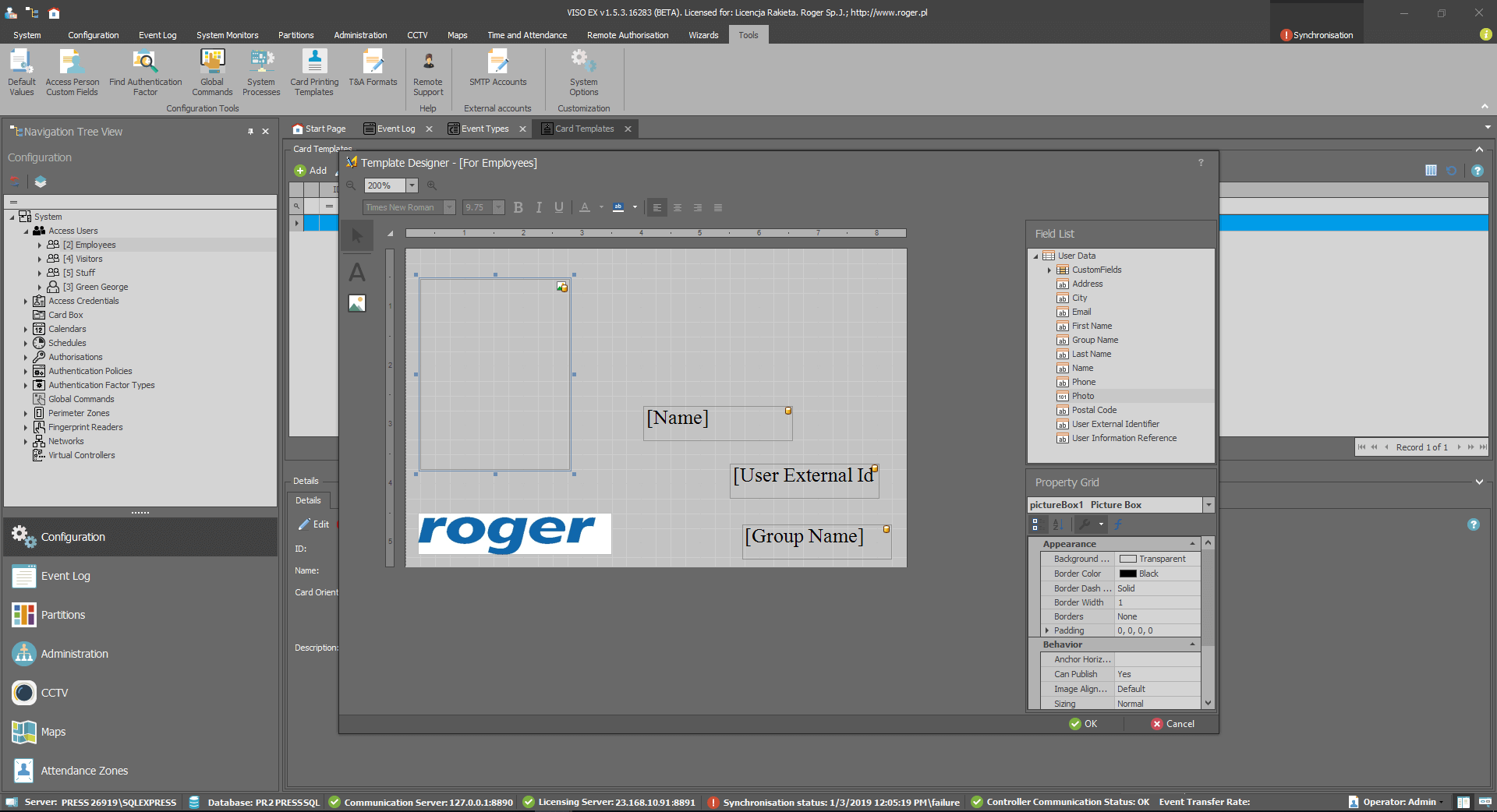

  • designing and printing badges
  • wizards for quick system configuration
  • creators for serving people and guests


90-day trial license for VISO EX software

License for the RACS 5 system management software; base version, includes a license to operate VISO Web and VISO Mobile; requires the License Key; base version limitations:
- up to 32 doors
- up to 1000 users
- 2 operator workstations
- 3 communication services
- 100 objects on Maps
- 1 partition

License for an additional 16 doors

License for an additional 32 doors

License for an additional 64 doors

License for an additional 128 doors

License for an additional 100 users

License for an additional 500 users

License for an additional 1000 users

License for an additional 5000 users

License for an additional 10000 users

License for 1 additional VISO operator workstation

License for 1 additional communication service

Integration Server license

License for an additional 500 objects on Maps

License for an additional 1000 objects on Maps

Single partition license

Virtual controller license with equipment tracking functionality

Visitor management module license

License for integration with KONE elevator system

License for integration with KONE elevator system via the RCGIF protocol

License for integration with Otis elevator system

License for integration with Schindler elevator system

License for integration with XProtect Milestone

License for integration with VMS NetStation Enterprise (Alnet Systems)

License for integration with PSIM Argus RV (Telbud)

License for Integration with BMS Nazca platform (APA Group)

License for integration with SMS/BMS C4 (Gamanet)

License for integration with VMS Luxriot Evo (Luxriot)

License for integration with VMS GANZ CORTROL (CBC Group)

License for software integration with INTEGRA (SATEL) alarm control panels

License for integration with Galaxy (Honeywell) intruder alarm system

License for software integration with CCTV (Dahua, Hikvision, BCS)

Global Anti-Passback license

License for integration with Active Directory Services (LDAP)

1-door license - integration with dormakaba locks

License for integration with the Bosch fire protection system

License for integration with the Siemens fire protection system

License enables management of RKD32 Key Cabinet from VISO EX software; the license is required for each RKD32/RKD32EXT Key Cabinet

VISO EX upgrade is calculated as a price of a new license reduced by the price of already owned license



pdf Integration of RACS 5 v2 Through Web Services API Manual (826 KB)

pdf AN005 RACS 5 Software and PC Requirements (561 KB)

pdf VISO EX Data Sheet (147 KB)

pdf RogerSVC Data Sheet (117 KB)

archive VISO v2.0.6.32125 (242.44 MB)
Windows OS software dedicated to RACS 5 system setup and management.
Note! Aplication cooperates only with new fw MC16 v1.7.4.624 - Download from here
Discontinuation of file database support. Please read the application note AN015 before installation.

archive RogerSVC v2.0.6.32125 (189.05 MB)
Roger Service Manager pack
Note! For multi-user operation, the pack should be installed on one computer (e.g. on a server) only.
Pack cooperates only with new fw MC16 v1.7.4.624 - Download from here
