About

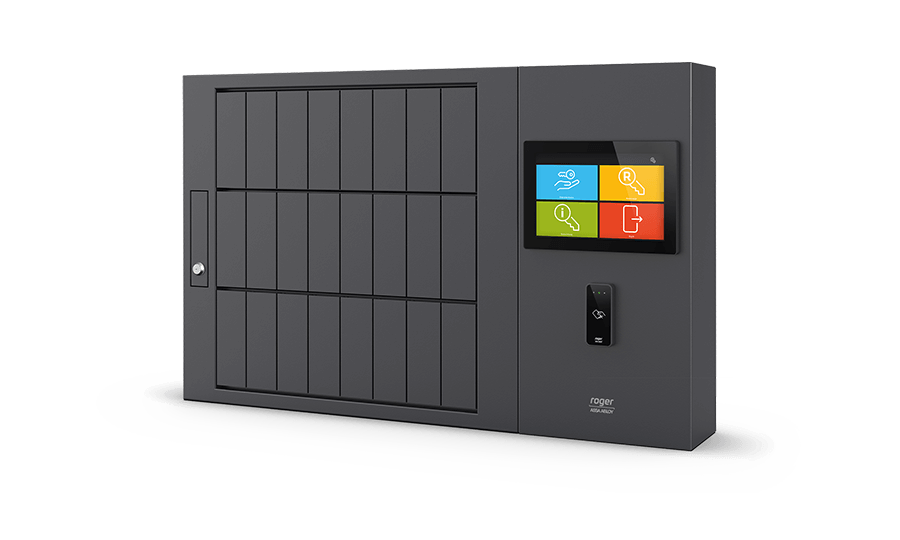

The RKD24CT electronic key cabinet is an electro-mechanical key distribution and monitoring system.
Each monitored key is permanently attached to the RFID fob by the user. Key-fob attachment does not require any specialized tool or seal. If necessary, the key and fob can be paired with an additional seal.
Each key is stored in an individual container with a cover. Access to keys is limited to authorized users only and according to predefined schedules. Users are identified by a proximity card and/or PIN. Keys can be divided into two groups: internal and external. The key from the internal group can be collected by the user only if he/she returned earlier all keys belonging to the external group. The user can reserve the key for a certain time. It is also possible to set the maximum time for which a specific key can be picked up or the time when it must be returned.
In case of emergency, keys can be released from the emergency panel to which access is protected by means of a traditional key. Any attempt to open boxes or the device enclosure in a forced way is registered in the event log and can be signalled on the external device or system (alarm system, alarm siren, etc.). RKD24CT is equipped with touch-type graphical control panel with a built-in proximity reader, which can control up to six cabinets (1 master RKD24CT cabinet and 5 RKD24CT-EXT or RKD32EXT extension cabinets). Users can be identified on the control panel or external reader with the Wiegand interface or RS485 (Roger). In particular, it can be an RFT1000 fingerprint reader (Roger), MCT84M-BK-QB QR code reader, or MCT80M-BLE reader which enables proximity (MIFARE ® DESFire ® ) and mobile (Bluetooth or NFC) identification. The control panel’s software offers a user-friendly, icon-based graphic interface that requires just a short training before use.
Group of 4 Cabinets with Shared Control Panel
RKD24CT cabinets can be operated in a standalone or in a networked system. In networked mode cabinet configuration and event monitoring are conducted by RACS 5 access system (Roger). The same access credentials (card, PINs) can be used in the access control system and key depositor. In standalone mode, the cabinet can be managed from the graphical panel or remotely, via a web browser. For integration with third-party systems, the SDK is offered on individual terms.
Versions
RKD24CT-EN
Electronic key cabinet with individual key containers and 7” touch control panel; 24 RFID ID fobs; key fobs attached to keys by user; 230 VAC power supply
RKD24CT-EXT
Electronic key cabinet with individual key containers and without control panel; 24 RFID ID fobs; key fobs attached to keys by user; connection to the RKD32 or RKD24CT key cabinet is required

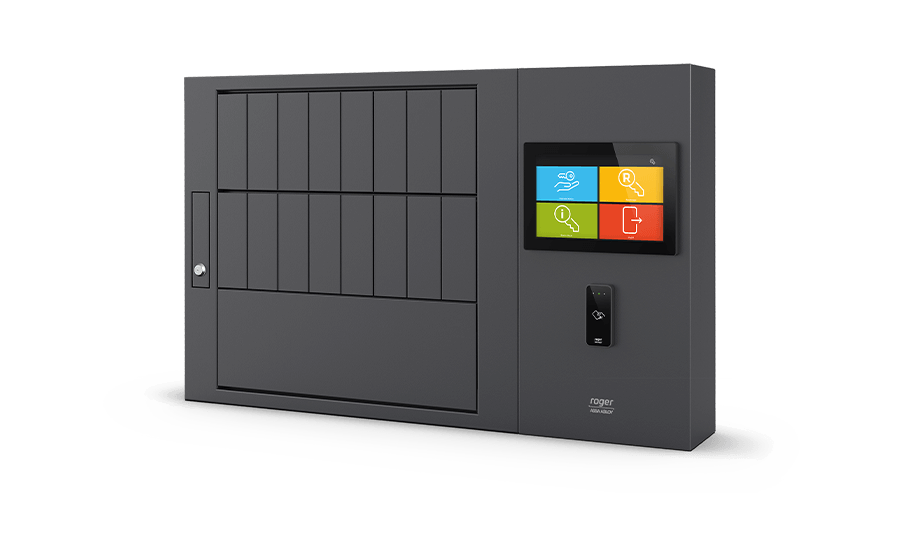

RKD24CT-16-EN
Electronic key cabinet with individual key containers and 7” touch control panel; version with 16 key containers; 16 RFID ID fobs; key fobs attached to keys by user; 230 VAC power supply

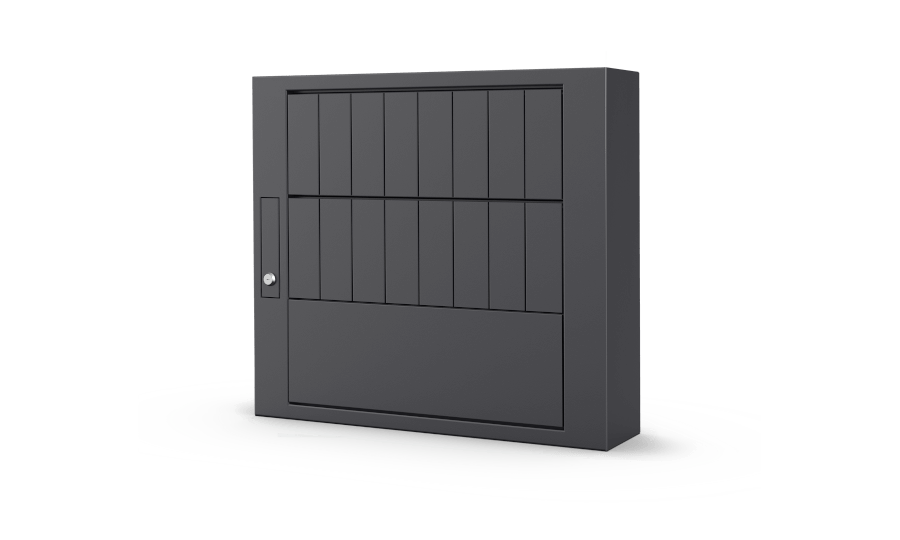

RKD24CT-EXT-16
Electronic key cabinet with individual key containers and without control panel; version with 16 key containers; 16 RFID ID fobs; key fobs attached to keys by user; connection to the RKD32 or RKD24CT key cabinet is required

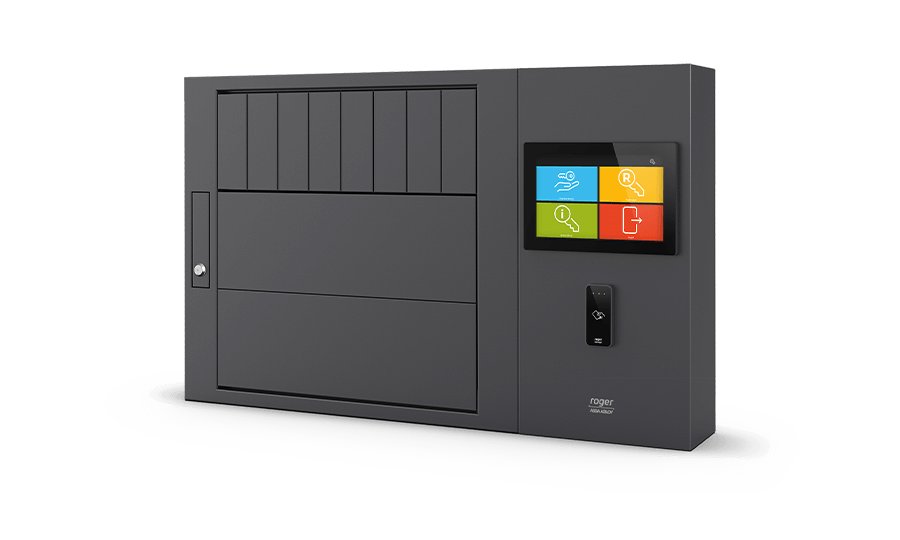

RKD24CT-8-EN
Electronic key cabinet with individual key containers and 7” touch control panel; version with 8 key lockers; 8 RFID ID fobs; key fobs attached to keys by user; 230 VAC power supply
RKD24CT-EXT-8
Electronic key cabinet with individual key containers and without control panel; version with 8 key containers; 8 RFID ID fobs; key fobs attached to keys by user; connection to the RKD32 or RKD24CT key cabinet is required
MK Option
Key to unlock the case in the Master Key system
RKD32KF
RFID keyfob; 5 pcs
