OSR80M-BLE Proximity Reader

The OSR80M-BLE is an access terminal dedicated to work with an access controller that supports the OSDP v2.2 protocol.
  • OSR80M-BLE
    OSR80M-BLE
  • OSR80M-BLE
    OSR80M-BLE
  • OSR80M-BLE HIGH BASE
    OSR80M-BLE HIGH BASE
  • OSR80M-BLE DIMENSIONS
    OSR80M-BLE DIMENSIONS

About

The OSR80M-BLE is an access terminal dedicated to work with an access controller that supports the OSDP v2.2 protocol.

The terminal enables the identification of users by 13.56 MHz MIFARE® Ultralight/Classic/DESFire (EV1, EV2, EV3)/Plus cards and by use of a smartphone with NFC or Bluetooth technology. In the case of Bluetooth identification, the reading range can reach up to 10 m, while other methods offer a few centimetres of reading range. The mobile identification requires the Roger Mobile Key application installed on Android or iOS phones.

The reader is equipped with two functional keys: Door Bell and Light, which can be programmed for other functions if necessary. The OSR80M-BLE can be used in the RACS 5 access control and building automation system using the additional MCI-3 interface.

Because of its relatively small size, the reader can be also used as a locker/cabinet reader. OSR80M-BLE can be installed in outdoor locations without any additional protection measures. The terminal is aligned with the QUADRUS series product line.

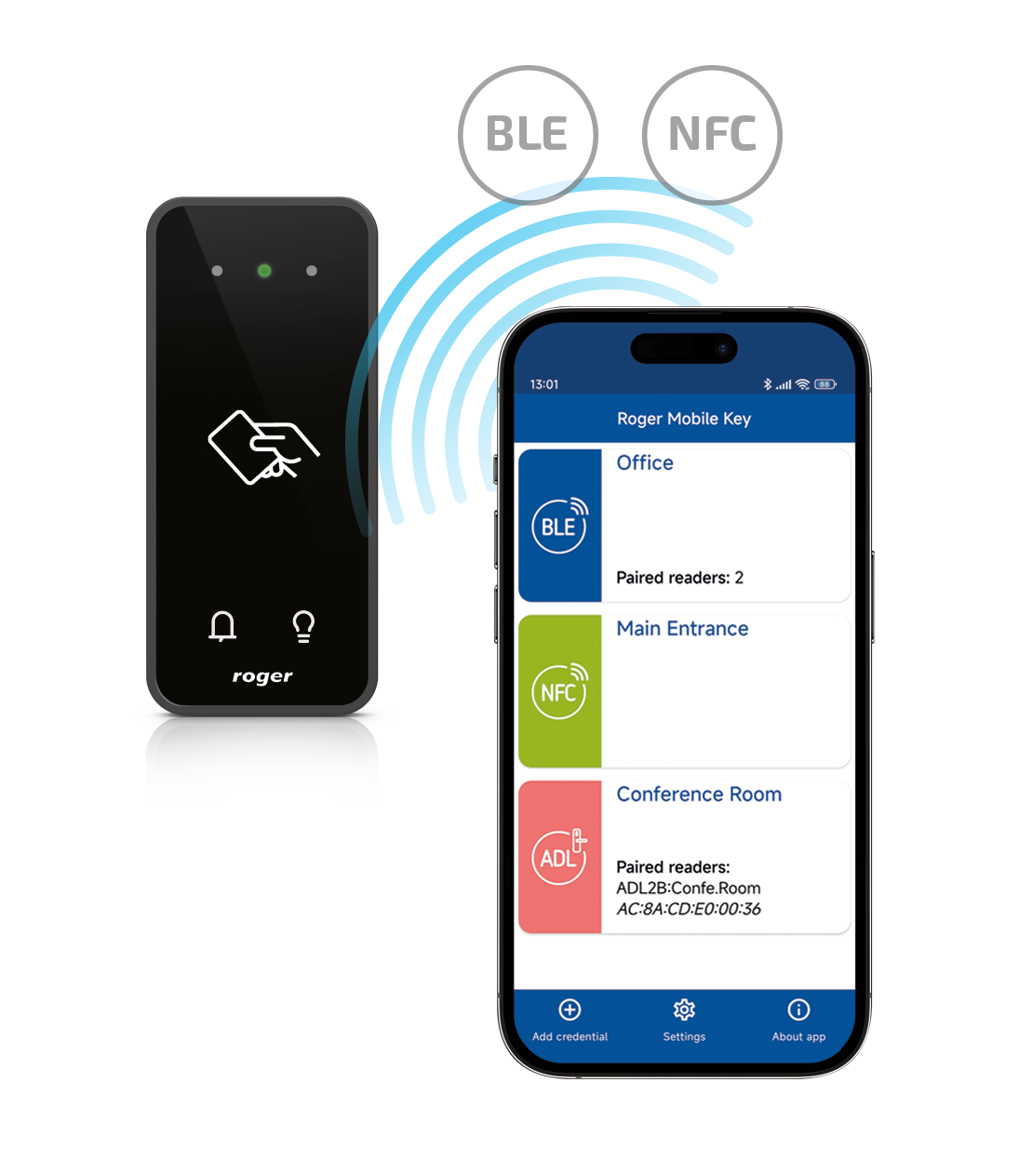

Mobile Identification


Features

  • access terminal supporting OSDP v2.2
  • read 13.56 MHz MIFARE® Ultralight/Classic/Classic/ DESFire (EV1, EV2, EV3)/Plus cards
  • mobile identification using smartphone with NFC or Bluetooth
  • Door Bell and Light function keys
  • 3 LEDs
  • buzzer
  • RS485
  • tamper
  • outdoor operation
  • dimensions: 100 x 45 x 16 mm (height x width x depth)
  • QUADRUS line design
  • CE, RoHS

Versions

OSR80M-BLE Proximity Reader

OSR80M-BLE
Access terminal; 13.56 MHz MIFARE® Ultralight/Classic/DESFire (EV1, EV2, EV3)/Plus/NFC/BLE; OSDP v2.2; supply 12 V; QUADRUS series design


High Base of the Reader Enclosure OSR80M-BLE Proximity Reader

High base of the reader enclosure; the base comes complete with a brand new device and can be used as a replacement for the standard base
